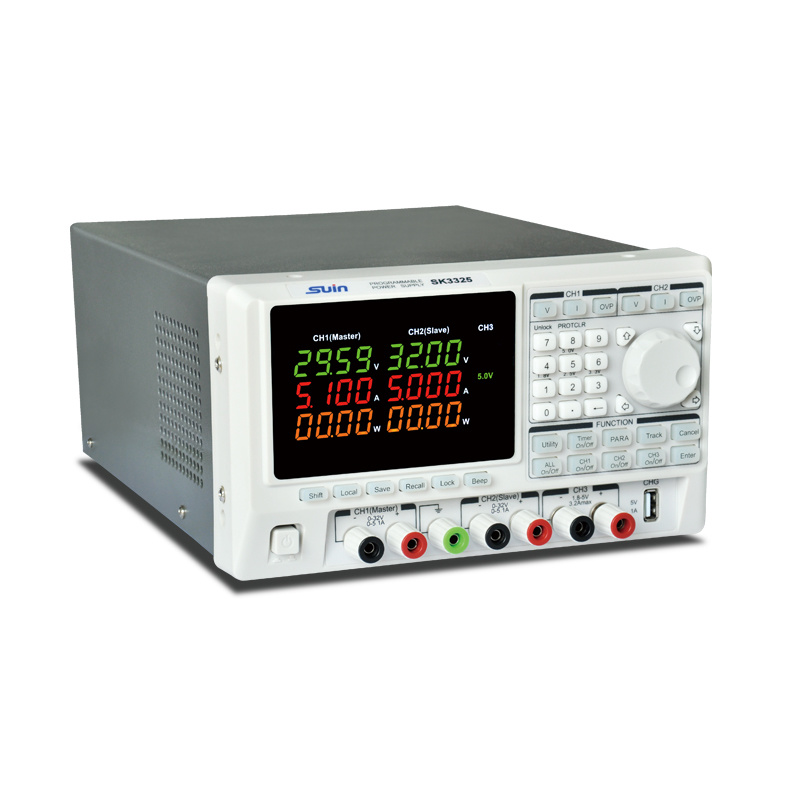

Programmable Linear DC Power Supply
Feature
The SK33XX series programmable linear DC power supplies have three independent outputs – two sets of adjustable voltage/current and a fixed set of selectable voltage1.8V, 2.5V, 3.3V and 5V. it has three available operation modes–independent, series and parallel modes. All make this series become a high performance-to-price ratio instrument.
Product Model
SK3323/SK3325/SK3503
Get in touch with us today to discuss your needs!
Programmable Linear DC Power Supply Application
Military R&D, Quality detection, Circuit test, Test of industrial manufacture automatization,
Education and Technical Training, Test of electronic assemblies, Aging test
Design Feature
1. 3 independent outputs-two 32V or 50V /5.1A or 3.2A, one 1.8V, 2.5V, 3.3V, 5V/3.2A, maximum 342W.
2. 4 digit voltage and current display, minimum resolution-10mV, 1mA
3. Smart temperature controlled fan to reduce noise effectively.
4. Save/Recall 5 group system set-ups
5. Standard timing output
6. Comprehensive over-voltage protection
Programmable Linear DC Power Supply Key Features:
Linear Regulation:
Stable Output: Provides highly stable and low-noise DC output.
Low Ripple and Noise: Ideal for sensitive analog and RF circuits.
Programmability:
Remote Control: Can be controlled via various interfaces such as USB, Ethernet, GPIB, or RS-232.
Software Integration: Compatible with software for automation, data logging, and complex sequencing.
User-Defined Settings: Ability to set and recall voltage, current, and protection settings.
Precise Adjustment:
Fine Resolution: Allows fine-tuning of output voltage and current with high precision.
Multiple Ranges: Often provides multiple voltage and current ranges to accommodate different requirements.
Protection Features:
Overvoltage Protection (OVP): Protects connected devices from excessive voltage.
Overcurrent Protection (OCP): Limits current to prevent damage to the power supply and the device under test.
Thermal Protection: Shuts down the power supply in case of overheating.

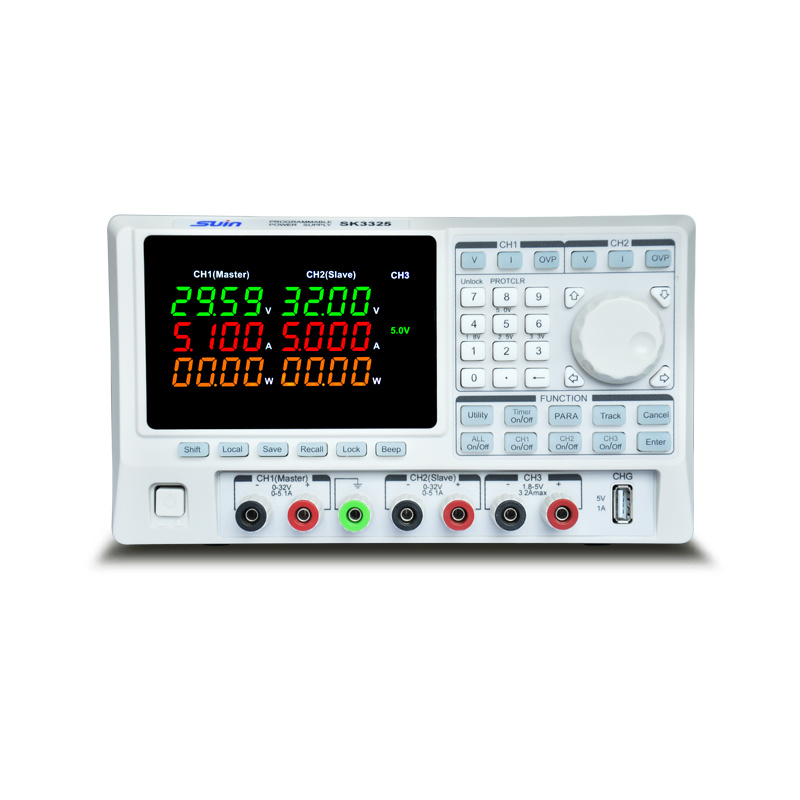

Display and Controls:
Digital Display: Provides real-time readings of output voltage, current, and power.
Intuitive Interface: User-friendly front panel controls for manual operation.
Multiple Output Channels:
Some models offer multiple independent output channels, each programmable, to power several devices simultaneously.
| Model | SK3323 | SK3325 | SK3503 | ||
| Channel | CH1 | 0~32V/ 0~3.2A | 0~32V /0~5.1A | 0~50V/ 0~3.2A | |
| CH2 | 0~32V/ 0~3.2A | 0~32V/ 0~5.1A | 0~50V/ 0~3.2A | ||
| CH3 | 1.8V/2.5V/3.3V/5.0V switchable, 3.2A (Max. output) | ||||
| Line Regulation | Voltage | CH1, CH2 | ≤1×10-4+2mV | ||
| CH3 | ≤1×10-4+3mV | ||||
| Current | CH1, CH2 | ≤1×10-4+2mA | |||
| Load Regulation | Voltage | CH1 | ≤1×10-4+3mV | ≤1×10-4+8mV | ≤1×10-4+3mV |
| CH2 | |||||
| CH3 | ≤1×10-4+3mV | ||||
| Current | CH1, CH2 | ≤1×10-4+2mA | |||
Programming/ Readback Accuracy | Voltage | CH1 | ≤±(0.5%+30mV) | ≤±(0.5%+60mV) | |
| CH2 | |||||
CH3 (no readback) | ≤±7% | ||||
| Current | CH1 | ≤±(0.5%+30mA) | ≤±(1%+60mA) | ≤±(0.5%+30mA) | |
| CH2 | |||||
CH3 (no readback) | ≥3.2A | ||||
| Ripple and Noise | Voltage | CH1, CH2 | ≤1mVrms | ≤1.5mVrms | |
| CH3 | ≤1mVrms | ||||
| Current | CH1, CH2 | ≤3mArms | ≤5mArms | ≤3mArms | |
Display resolution | Voltage | CH1, CH2 | 10mV | ||
| Current | CH1, CH2 | 1mA | |||
| Display Digits | Voltage | 4 digits | |||
| Current | 4 digits | ||||
| Other function | Auto switch of serial and parallel | ||||

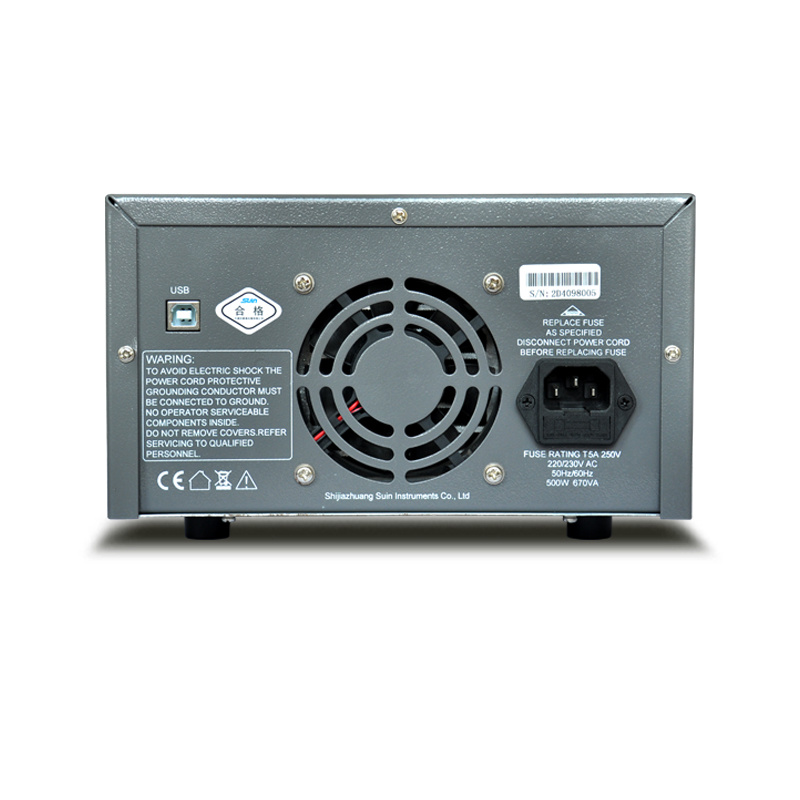

General Characteristics | Rated Voltage | AC220(1±10%)V | |||
| Rated Power | 500W 670VA | 600W 800VA | |||
| Rated Frequency | 50/60(1±5%)Hz | ||||
| USB charging Interface | 5V 1A | ||||
| Remote Interface | USB, LAN (option) | ||||
| Dimension | 226×140×303mm3 | 226×140×333mm3 | |||
| Weight | 8KGs | 9KGs | |||
Standard Accessories
Power Cord:1pcs
CD( User's Guide):1pcs
Options
LAN
