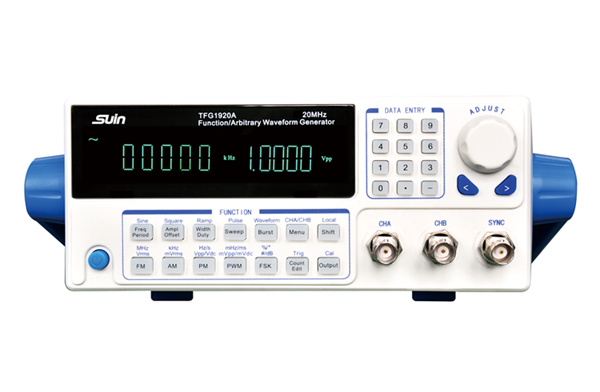

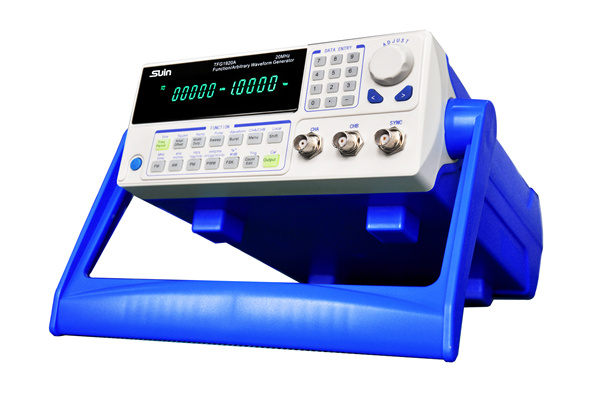

5/10/20MHz Economical Signal Generator
Overview
TFG1900A Series are economical function generator which has two channel outputs, 20ppm frequency accuracy, and can make 16 kinds waveform. Besides that, with multifunction, simple keyboard and digital displaying, it is broadly used in education, personal test and industrial field to meet your basic test requirement.
Product Model
TFG1905A/TFG1910A/TFG1920A
Features
* Dual channel outputs
* Frequency accuracy 20ppm and 1μHz resolution
* Abundant modulation function AM, FM, PM,
PWM and FSK
* Provide sweep and burst
* 100MHz Built-in counter

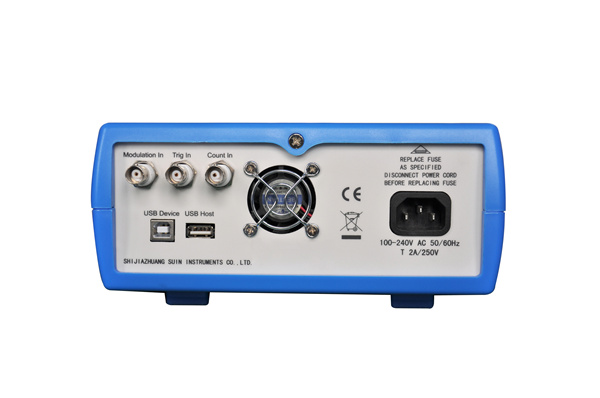

* Standard interface: USB Host & Device
Specifications
| TFG1905A | TFG1910A | TFG1920A | ||
| Frequency | ||||
| Range | Sine | 1μHz ~ 5MHz | 1μHz ~ 10MHz | 1μHz ~ 20MHz |
| Square, Pulse | 1μHz ~ 5MHz | |||
| Others | 1μHz ~ 1MHz | |||
| Resolution | 1μHz, 6 digits | |||
| Accuracy | ±20ppm | |||
| Waveform | ||||
| Type | 11 build-in waveform(Sine, Square, Ramp, Pulse, etc.) +5 user-defined arbitrary waveforms | |||
| Length | 4096 points | |||
| Sampling Rate | 100 MSa/s | |||
| Vertical Resolution | 10 bits | |||
| Amplitude | ||||
| Range | Frequency≤8MHz | 0 ~ 10Vpp(50Ω), 0 ~ 20Vpp(Open circuit) | ||
| Frequency>8MHz | 0 ~ 9 Vpp(50Ω), 0 ~ 18Vpp(Open circuit) | |||
| Resolution | 2mVpp(Amplitude>2Vpp) | |||
| 0.2mVpp(Amplitude≤2Vpp) | ||||
| Offset (Ampl. 0Vpp) | ||||
| Range | ±5Vdc (50Ω), ±10Vdc (Open circuit) | |||
| Resolution | 2mVdc | |||
| Modulation (CHA) | ||||
| FM,AM,PM,PWM | Carrier Waveform | 16 waveforms, Sine, Square, Ramp, etc. (only Pulse for PWM) | ||
| Modulating Waveform | 16 waveforms, Sine, Square, Ramp, etc. | |||
| Modulating Frequency | 2mHz ~ 20kHz | |||
| FSK | Carrier Waveform | 16 waveforms, Sine, Square, Ramp, etc. | ||
| Hope Frequency | 1μHz ~ 5MHz | 1μHz ~ 10MHz | 1μHz ~ 20MHz | |
| Rate | 1mHz ~ 100kHz | |||
| Sweep (CHA) | ||||
| Carrier Waveform | 16 waveforms, Sine, Square, Ramp, etc. | |||
| Type | Linear or Logarithmic | |||
| Sweep Time | 50ms ~ 500s | |||
| Burst (CHA) | ||||
| Carrier Waveform | 16 waveforms, Sine, Square, Ramp, etc. | |||
| Burst Count | 1 ~ 1000000 | |||
| Internal Period | 1μs ~ 500s | |||
| Start/Stop Phase | 0° ~ 360° | |||
| SYNC Output | ||||
| Waveform Characteristic | Square, rise/fall time ≤ 20ns | |||
| Output Level | TTL compatible | |||
| Counter | ||||
| Frequency Range | 1Hz ~ 100MHz | |||
| Input Amplitude | 100mVrms ~ 7Vrms | |||
| Period | 50ms ~ 5s | |||
| General Characteristics | ||||
| Power | AC 100 ~ 240V, 45 ~ 65Hz, < 30VA | |||
| Display | VFD display | |||
| Dimension & Weight | 322×256×102mm, Approx.1.5 kg | |||
When selecting an AC signal generator for your projects, it's important to consider the signal generator price to ensure it fits within your budget. The function generator price can vary depending on the features and capabilities, such as the function generator frequency range, which determines the versatility of the device. For those needing specific waveforms, an AC function generator or an arbitrary waveform generator might be the ideal choice. If precision is key, especially for applications requiring high accuracy, the grid meter 1MHz frequency accuracy is a critical specification to look for. These tools are essential for various testing and development purposes, making the right choice crucial for effective results.
Standard Accessories
Power Cord:1pcs
CD(Software+ User's Guide):1pcs
Options
Power Amplifier: 100W, load 8Ω
