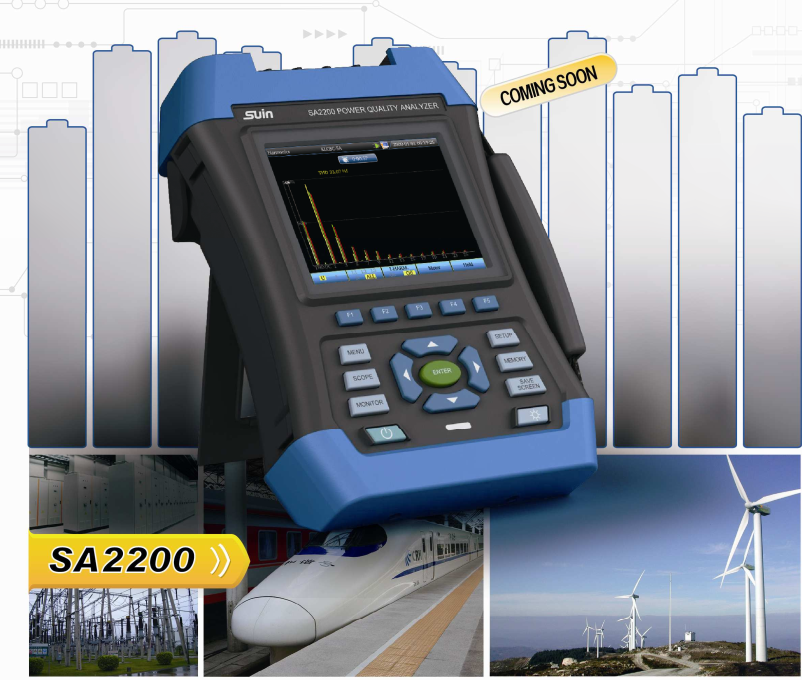

new products will be listed--SA2200 Power Quality Analyzer

Nov. 23, 2017

Key Feature

1 to 100th harmonic and 99th inter-harmonic display

Sample rate can reach to 200kS/s

GPS/Beidou time synchronization

WIFI, LAN and USB Host communication


Input           *Note: measured on Reference Voltage Input A/L1.


     Voltage Input

Input Channels

4 (3 phase + neutral) DC coupling

Max continuous input voltage

(AC+DC)1000Vrms

Accuracy

±0.1% of nominal voltage

Max pulse peak voltage

6kV

Input impedance

4MΩ

Current Input

Input Channels

4 (3 phase + neutral) DC coupling

Type

Clamp Current Sensor, with mV output

Input range

0~6000A

Input impedance

100kΩ

Arms(AC)
10mV/A
1mV/A
65mV/1000A



0~100A

1~1000A
15~6000A

Sampling

Resolution

8 channels 16 bits ADC, sample synchronously

Sampling rate

Max 200kS/s

Measurement



Measurement range

Resolution

Accuracy

Frequency

50Hz

42.50~57.50 Hz

0.001Hz

±0.01Hz

60Hz

51.00~69.00 Hz

0.001Hz

±0.01Hz

400Hz

385-414 Hz

0.01Hz

±0.1Hz

Harmonic

Harmonic number
Interharmonic
Harmonic voltage
Harmonic current
THD
DC relative
Frequency
Phase

1~100

1~99

0.0~100.0%

0.0~100.0%

0.0~100.0%

0.0~100.0%

0~6000Hz

-360°~ 0°




0.1%

0.1%

0.1%

0.1%

1Hz




±0.1%±n×0.1%

±0.1%±n×0.1%

±2.5%

±0.2%

1Hz

±n×1.5°


General Characteristics


     Display

Screen

Color TFT LCD

Size

5.6 inch

Resolution

640X480

Brightness

Adjustable


Power

Adapter input

AC  100-240V  50/60Hz

Adapter output

DC  12V  2A

Battery

Lithium ion battery     7.4V  5.2Ah

Battery operating time

>6 hours

Battery charge time

5 hours
