Mar. 12, 2025
An RF signal generator is an electronic device that produces radio frequency (RF) signals, usually at frequencies ranging from a few kilohertz (kHz) to several gigahertz (GHz). The Radio Frequency Generator Market size is estimated to be valued at US$ 1.54 Bn in 2025 and is expected to reach US$ 2.63 Bn by 2032, exhibiting a compound annual growth rate (CAGR) of 8.0% from 2025 to 2032.
This article will describe the different types of RF signal generators, how they work and what they are used for.

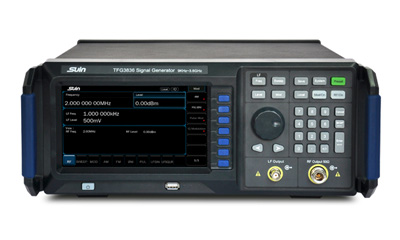

Suin 9KHz to 3.6GHz RF Signal Generator
In the world of RF (Radio Frequency) signal generators, there are three primary types, each suited for different engineering and testing needs:
These are the traditional type of RF signal generators that produce continuous, sinusoidal waveforms. They are known for their simplicity and reliability, often used in basic testing applications where modulation types like AM, FM, or phase modulation (PM) are needed.
Pros: Easy to use, reliable, and cost-effective for basic applications.
Cons: Limited in terms of complex modulation capabilities and frequency precision.
Digital signal generators are more advanced, offering a wide range of modulation types and higher precision. They often include features like frequency hopping, programmable waveforms, and better phase noise performance. These generators are widely used for more demanding applications such as digital communications, testing modern communication systems, and more complex R&D scenarios.
Pros: Higher accuracy, versatility in modulation, and better overall performance in digital communication scenarios.
Cons: More expensive and typically more complex to operate than analog generators.
Vector signal generators are the most advanced RF signal generators. They can generate both analog and digital signals with high precision, and they allow for the creation of complex, modulated waveforms. VSGs are capable of producing signals that simulate real-world communication systems, such as those used in LTE, 5G, Wi-Fi, and other advanced communication technologies.
Pros: Extremely versatile, capable of handling complex modulation schemes (QAM, PSK, etc.), and ideal for testing modern communication systems.
Cons: Expensive and require more technical expertise to operate effectively.

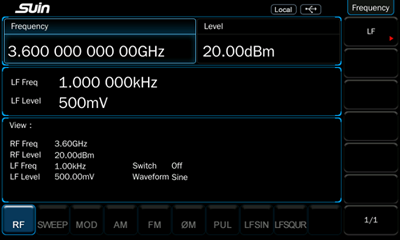

7 Inch TFT Capacitive Touch Screen
RF signal generators work by producing a stable, repeatable radio frequency signal, typically used for testing, development, and calibration of RF components and systems. The process begins with an oscillator that generates a high-frequency signal. This signal is then processed through modulation circuits (if required) to produce the desired waveform or signal type.
Frequency Control: The generator uses a frequency synthesizer to control the output frequency. The synthesizer can generate signals over a wide range of frequencies, from kilohertz to gigahertz.
Modulation: Depending on the application, the signal can be modulated in various ways, including amplitude modulation (AM), frequency modulation (FM), phase modulation (PM), or digital modulations like QAM or PSK. This allows the signal to simulate real-world RF communication signals.
Power Output: RF signal generators also control the power output of the signal, ensuring that it matches the needs of the device or system being tested.
RF signal generators are essential tools in a variety of industries, and their applications include:
Used to test mobile phones, base stations, satellite communication systems, and more. They are crucial for calibration, troubleshooting, and development of communication equipment.
RF signal generators are used in the design and testing of RF components such as amplifiers, mixers, filters, and oscillators. They are critical in ensuring that components meet performance standards before they are shipped for production.
In defense and aerospace, RF signal generators are used for testing radar systems, electronic warfare equipment, and avionics. They help simulate various RF environments for testing military and aviation technology.
Universities and research labs use RF signal generators to conduct experiments involving RF and microwave signals. These are crucial for advancing technologies in communications, medical devices, and other cutting-edge applications.
RF signal generators are also employed in automotive testing, particularly for automotive radar and communication systems, including autonomous vehicle technologies.
When choosing an RF signal generator for your application, several factors should be considered:
Ensure the generator supports the required frequency range for your specific application. Different industries and tests require different frequency spans. Suin’s 3.6GHz RF signal generator offers a frequency range from 9 kHz to 3.6 GHz, which is crucial for a wide variety of RF and microwave applications. Ensure that the frequency range meets your specific testing or development needs, whether for communications, electronics, or research.
Depending on the type of testing you need to perform, consider whether the generator can support the modulation types you need (AM, FM, PM, pulse modulation, phase modulation).
Provides Standard AM, FM, φM and Pulse Modulation (On/Off Ratio up to 70dbc)
Look for high precision and stability in the signal output. The more accurate the signal generator, the better your testing results will be.
Consider the required output power for your application. Some signal generators are designed for low-power applications, while others can handle high-power requirements.
Higher accuracy and pure output are essential for precise measurements and reliable testing results. The Suin 3.6GHz RF signal generator is designed to provide high-quality, stable output, ensuring accurate signal generation for your applications.

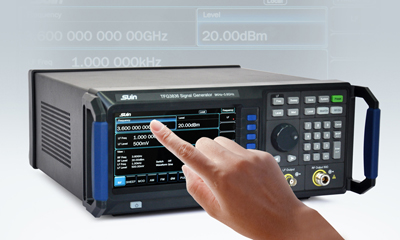

Ensure the signal generator has an intuitive interface that matches your experience level and can be easily integrated into your test setup.
The ability to perform frequency and power sweeps is an important feature, especially for testing components like amplifiers, mixers, and filters. The Suin 3.6GHz RF signal generator offers this capability, which can enhance your testing efficiency.
The Suin 3.6GHz RF signal generator provides precise frequency generation with a high level of accuracy, suitable for demanding R&D and testing environments. It ensures stable and reliable signal output for all your testing needs.
Yes, with a frequency range from 9 kHz to 3.6 GHz, the Suin 3.6GHz RF signal generator is versatile enough for both low and high-frequency applications, making it a great option for a wide array of RF and microwave systems.
It supports several modulation types, including AM, FM, φM, and pulse modulation, making it suitable for testing a variety of RF and microwave systems.
Yes, the Suin 3.6GHz RF signal generator is designed with industrial production lines in mind, offering reliable performance and fast sweep capabilities to help streamline testing processes.
The Suin 3.6GHz RF signal generator’s extensive frequency range, high accuracy, and modulation flexibility make it the ideal tool for R&D, education, and industrial applications. Whether you're testing telecommunications systems, manufacturing electronic components, or conducting aerospace research, the Suin 3.6GHz RF signal generator provides the versatility and performance required for demanding tasks.
If your business is ready to scale its operations and ensure top-quality RF testing, the Suin 3.6GHz RF signal generator is the right solution. Contact us today for bulk purchasing and take the next step towards improving your testing and development capabilities.
