Introduction of class S power quality analyzer

The power quality analyzer is a specialized portable product for testing and analyzing the quality of grid, provides harmonic and power quality analysis in power. It can also collect data for a long time and monitor the grid, and is equipped with data analysis software to analyze the data uploaded to the computer.

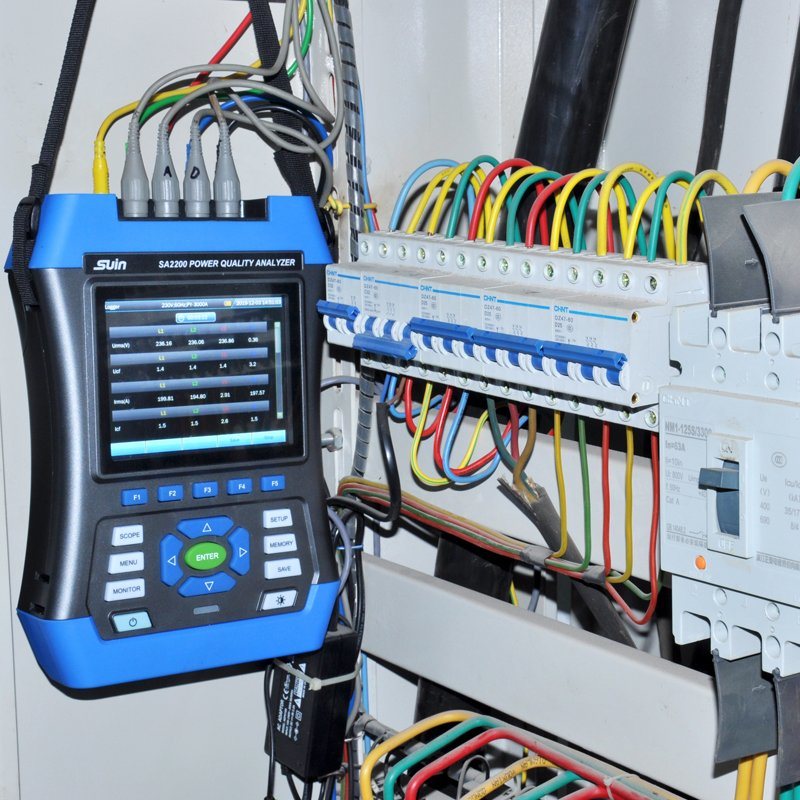

We produce two types of power quality analyzer, SA2100 and SA2200. SA2200 is a class S power quality analyzer, and then we will mainly introduce the functions of SA2200.

1、 Oscilloscope mode

In oscilloscope mode, the voltage and current of the power system are displayed in waveform form. Phase voltage, phase current and frequency can also display.

2. Voltage, current and frequency

This function is used to measure steady-state voltage, current, frequency and waveform factor. Before using other measurement mode to check the system in detail, this screen can help you understand the power system’s performance.

3. Dips and swells

Dips and swells record swells, sips, interruptions, and rapid voltage changes.

4. Harmonics

The harmonics function can measure and record up to100 times harmonic and interharmonics. In addition to this, measuring the DC component and the total harmonic distortion can also be realized and the final measured values are displayed in a histogram., which shows the percentage of each component to the fundamental signal or the total signal.

5. Power and energy

Power and Energy displays a table with all important power parameters. The power measurement is compliant with IEEE1459

In addition to the above, it also supports flicker, unbalance, transient capture, surge and many other functions, as well as a logger that records data of parameters in period of time, which will be helpful to data processing and analysis.

We also have various of available matching current clamps for use, so you can choose and buy one that suits your need. If you would like to know more about the SA2200, please contact us!
