A power analyzer is a multifunctional measurement instrument used to analyze the power quality of a direct current (DC) or alternating current (AC) system.
A power analyzer integrates the functions of multiple instruments in one package, thus optimising cost and space. Instruments it can replace include:
Power meters: Power analyzers measure power consumption and power quality.
Oscilloscopes: Power analyzers capture and display voltage and current waveforms in real time.
Digital multimeter: Power analyzers can measure instantaneous voltage and current like a multimeter.
Data loggers: Power analyzers can record measurement data over a period of time and transfer it to a computer for detailed power analysis.
Power analyzers and power meters are both essential instruments for assessing electrical power systems, but they serve different purposes and offer varying levels of measurement sophistication.
Power Meters are designed to measure basic electrical parameters such as voltage, current, active power (watts), and energy consumption (kilowatt-hours). They are typically used in applications where fundamental power measurements are sufficient, such as monitoring energy usage in residential or simple industrial settings. Power meters are generally straightforward to operate and provide essential data without extensive analysis capabilities.

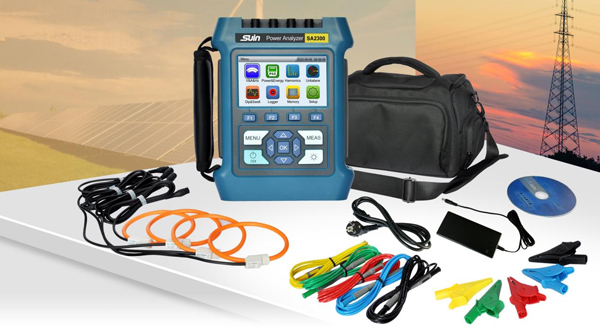

SA2300 Power and Energy Analyzer
Power Analyzers, on the other hand, offer advanced functionalities beyond those of standard power meters. They can measure a comprehensive range of electrical parameters, including:
Active and Reactive Power: Assessing both real and reactive components of power.
Apparent Power: Calculating the total power supplied to the circuit.
Power Factor: Evaluating the efficiency of power usage.
Harmonics Analysis: Identifying distortions in the voltage and current waveforms.
Transient Capture: Recording short-duration events such as voltage sags or swells.
These capabilities make power analyzers indispensable in research and development, product testing, and environments where detailed analysis of power quality and system performance is crucial. They provide insights into the efficiency, stability, and quality of electrical systems, enabling users to optimize performance and address potential issues proactively.
Types of Power Analyzers are generally categorized based on their AC/DC measurement capabilities:
DC Power Analyzers: Suitable for analyzing the direct current outputs of DC power supplies, DC-DC converters, and AC-DC adapters.
AC Power Analyzers: Used to characterize the outputs of AC power supplies, DC-AC converters, and AC-AC converters. While primarily designed for AC measurements, many AC power analyzers also have the capability to analyze DC signals, providing versatility in various applications.
In summary, while power meters are appropriate for basic power measurements, power analyzers offer a more comprehensive suite of tools for detailed analysis and troubleshooting of electrical systems. The choice between the two depends on the specific requirements of the application, with power analyzers being the preferred option for complex and high-precision power measurement needs.

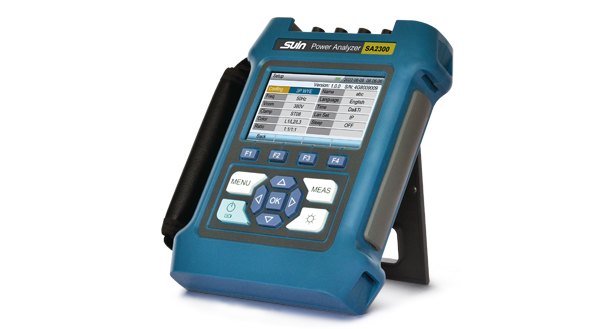

When evaluating tools for comprehensive analysis of three-phase electrical systems, the Suin SA2300 3-Phase Power Analyzer emerges as a top choice. This portable device is engineered to monitor and assess the quality of power grids effectively, offering a suite of advanced features tailored for both operational efficiency and user convenience.

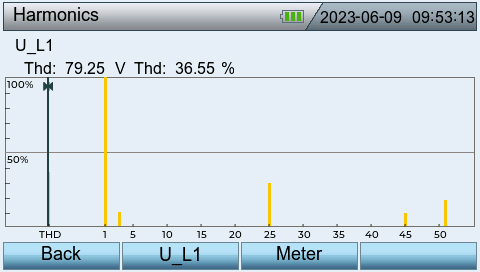

Comprehensive Harmonics Analysis: Capable of tracking harmonics up to the 51st order, the SA2300 provides in-depth insights into waveform distortions, essential for maintaining power quality.

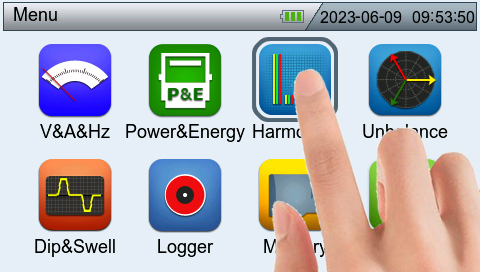

Intuitive Touchscreen Interface: Equipped with a 4.3-inch color LCD touch screen, the analyzer ensures user-friendly navigation and ease of operation during complex diagnostic tasks.
4.3 Inch Touch Screen Display for a Easier Operation

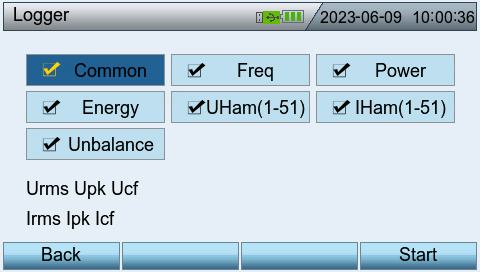

Robust Data Logging: Featuring a powerful logging function with a 32GB Micro SD card, it facilitates extensive data storage, enabling long-term monitoring and analysis of power system performance.

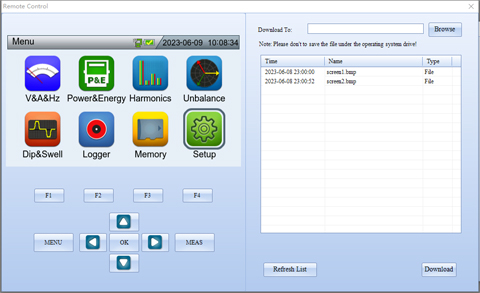

Advanced Data Analysis Tools: The device comes with dedicated PC software, enhancing data analysis capabilities and allowing for detailed examination of collected metrics.
Equipped with PC Software for Data Analysis
Investing in the Suin SA2300 3-Phase Power Analyzer means equipping your operations with a tool that combines precision, versatility, and user-centric design. Its comprehensive analysis capabilities and robust features make it an invaluable asset for professionals seeking to optimize power system performance and ensure high-quality operations.
For more detailed information and purchasing options, please visit Suin Instruments' official website: https://www.suindigital.com.
