SU5000 Series

Digital Pattern Generators/Pulse Pattern Generators


Overview

SU5000 Series-Digital Pulse Pattern Generators differently from other signal generators output analog waveforms, SU5000 Series pattern generators output digital pattern waveforms, using crystal oscillator as the time base, also have data storage and recall function. It has internal, external, manual trigger modes, and Ext. Trigger input 1Hz~10MHz for square, pattern rate 2mHz~50MHz for SU5303. Pulse output mode can be continuous, single, gate control. With these characteristics, it has applications in education, navigation, communication, and electric power load testing system.



Product Model

SU5101/5102

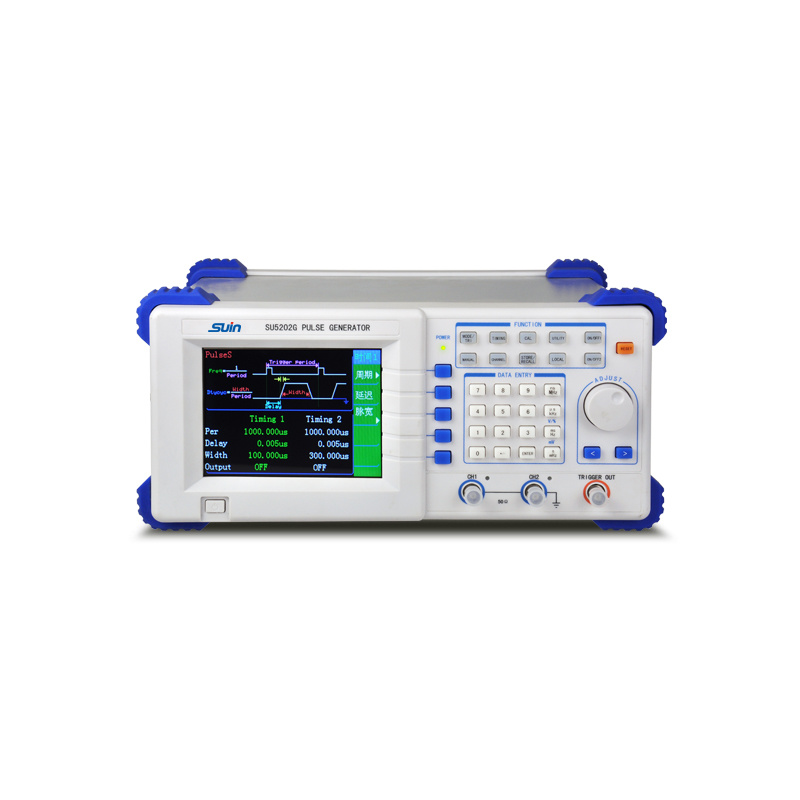

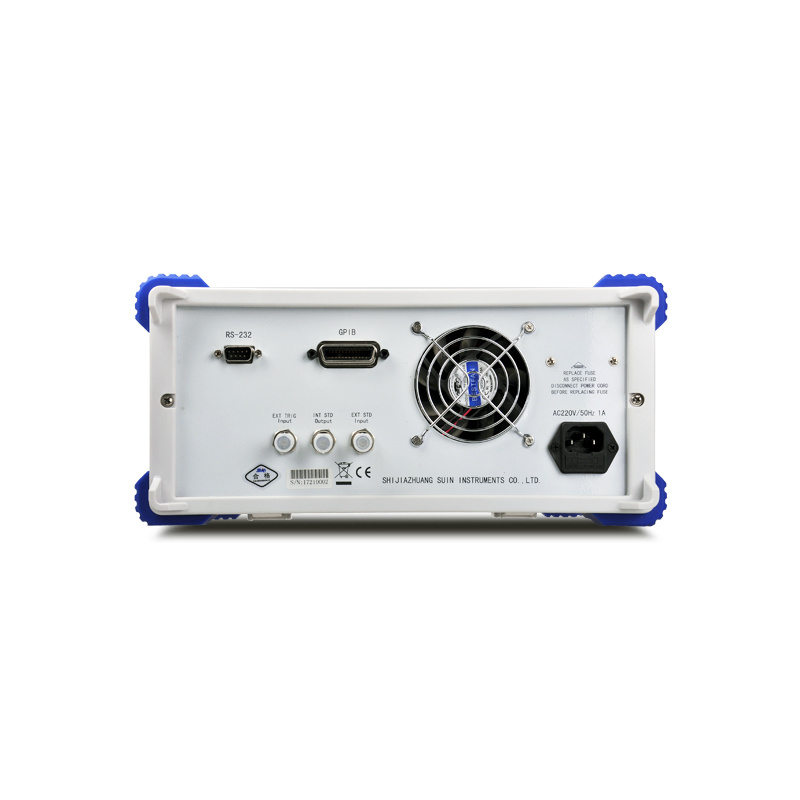

SU5202G

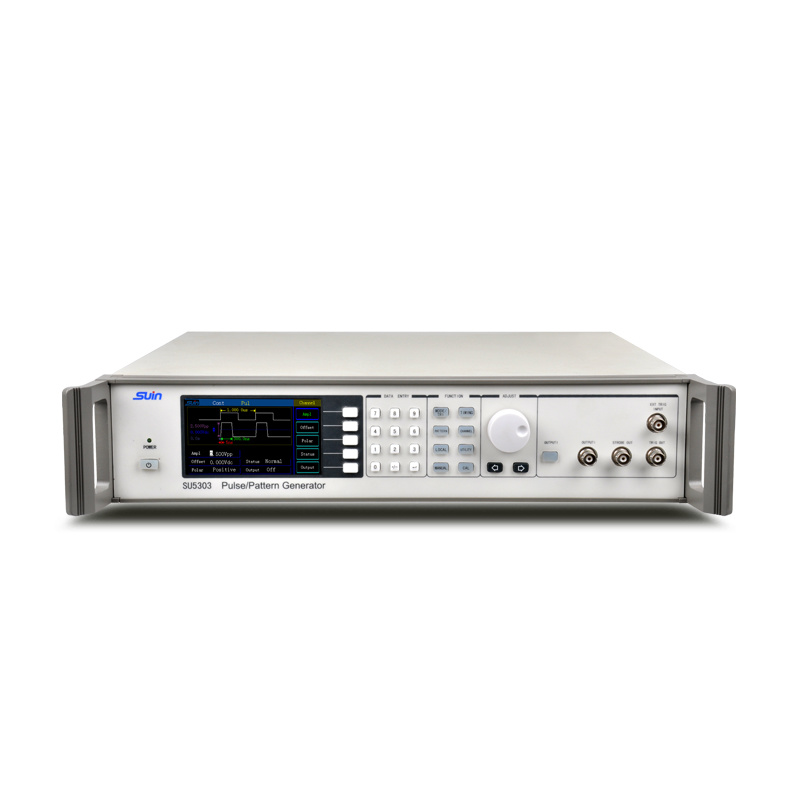

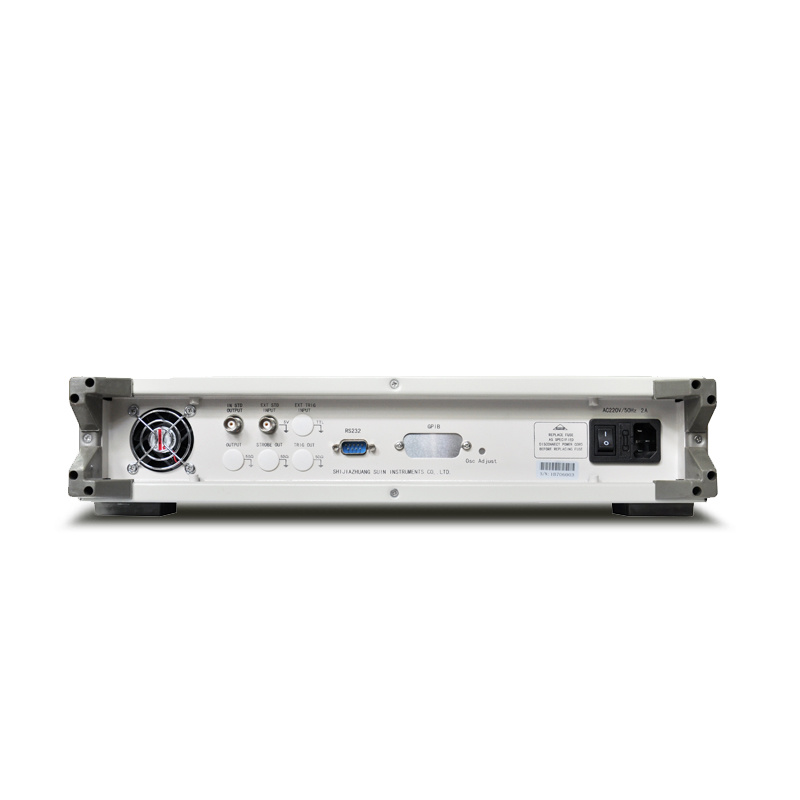

SU5302/SU5303

SU5000 Series Digital Pattern Generator Features

* Direct Digital Synthesis Technology

* Crystal Oscillation Reference

* High Accurate Time and Frequency

* Count burst or single burst both can be selected

* Multiple output channels and EXT

* Trigger/Frequency Standard Input channels

* Data Storage and Recall

* Optional GPIB and USB interface


SU5000 Series Digital Pattern Generator Specifiations


SU5101/5102SU5202GSU5302SU5303
Channel1/2221
Waveform
PulseSingle/Dobule, Logic Positive /Negative, Positive/Negative PolarySingle/Dobule, Logic Positive /NegativeLogic Positive /Negative
Edge Time≤10ns≤10ns8ns ~ 1ms8ns ~ 1ms
Overshoot≤ 10%≤ 10%≤ 10%≤ 5%
Time
Pulse Period20ns ~ 10000s (frequency range: 0.1mHz ~ 50MHz)
Time Interval5ns ~ 10000s8ns ~ 9999.5s
Resolution5ns (Low range), 10μs (High range)0.1ns(typical)
Interval Error

± (T×5×10-5 + 5ns)(Low range), ±(T×5×10-5 + 10μs)

(High range)

±(T×5×10-5+5ns)




Pattern



N/ALength:4095bitsLength:16384bits
Format:NRZFormat:NRZ, RZ
Rate:100mHz ~ 50MHzRate:2mHz ~ 50MHz
Resolution: 0.1Hz
Amplitude Offset
Amplitude Range

50mV ~ 10V

(High Z)

50mV ~ 5V (50Ω)50mV ~ 5V (50Ω)50mV ~ 5V (50Ω)
Offset Range

50mV ~ 10V

(High Z)

50mV ~ 5V (50Ω)50mV ~ 5V (50Ω)-5V~ 5V (50Ω)
Output Impedance50Ω
TTL
TTL/COMS LevelLow Level≤ 0.3V, High Level≥3.0V (high impedance load)
Output Impedance50Ω
Burst
Burst Count2 ~ 65000 cycles
Burst ModeContinuous, Signle
EXT. STD Input
Frequency10M mutiple
Amplitude0.5-5Vpp, AC coupling
Trigger
Trigger ModeInternal, External, Manual
Ext. Trigger InputFrequency: 1Hz ~ 10MHz (Square), Amplitude: 1Vpp ~ 20 Vpp
Input Impedance≥100kΩ
General Characteristics
PowerAC110-240V, 50/60Hz,<80VA
DisplayVFD5.7' TFT LCD5.7' TFT LCD4.3' TFT LCD
Optional InterfaceUSB, GPIBRS232(Standard),GPIB

RS-232

(Standard)

RS232(Standard),GPIB
Dimension & Weight

254×103×384mm,

Approx.3 kg

330×155×300mm,Approx.4.2kg

450×100×475mm,

Approx.6.0 kg

Digital pattern generator is a versatile tool used in electronics for creating precise signal patterns. Similarly, a pulse pattern generator and a digital pulse generator are essential for generating specific timing sequences in testing and development. A pattern generator can also refer to tools like an HTML pattern generator or an HTML input pattern generator, which help developers define input validation rules for forms. For signal-related applications, a pulse pattern or pulse signal generator is often employed to produce accurate waveform outputs.

SU5000 Series Digital Pattern Generator Standard Accessories

Power Cord:1pcs

Testing cable:1pcs

CD(Software+ User's Guide):1pcs


Options

Power Amplifier
