3GHz Signal Generator
Overview

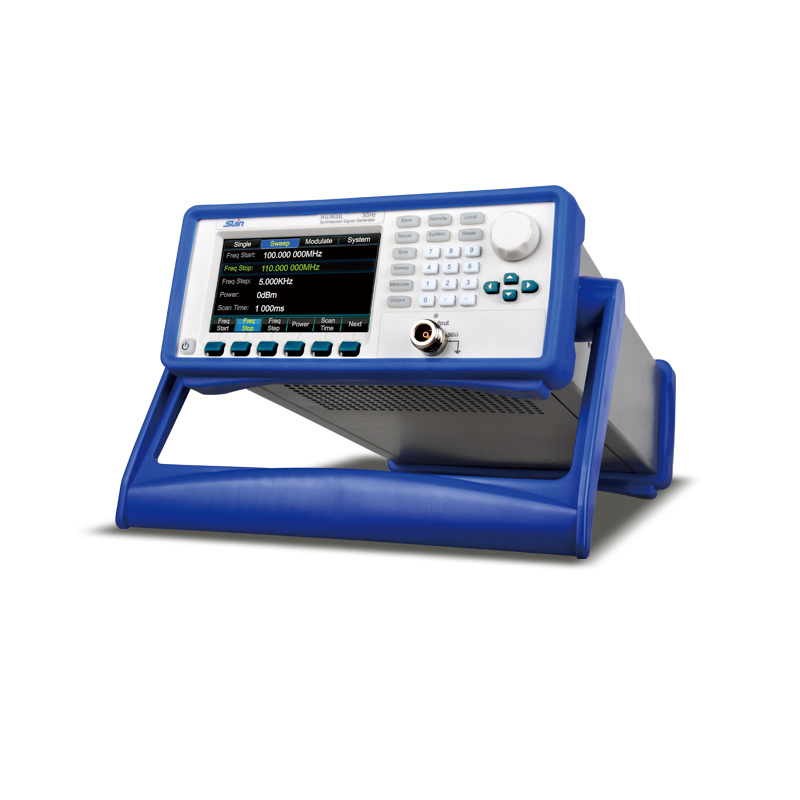

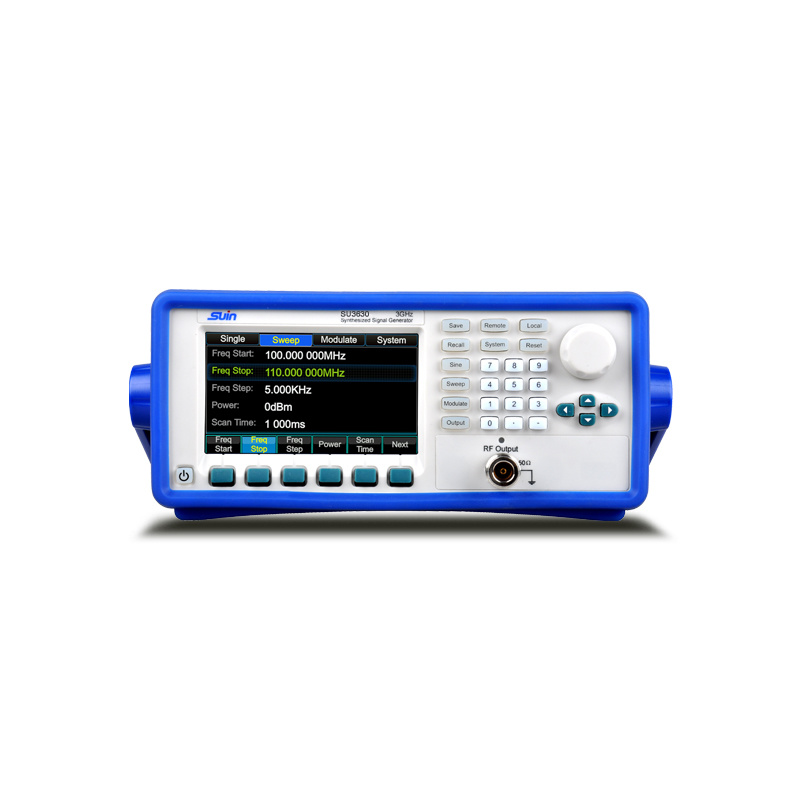

SU3630 Synthesized Signal Generator adopting phase-lock technique(phase lock loop controlling the oscillator) to synthesize frequency signal, SU3630 is 3GHz microwave synthesized signal generator, with reference frequency output 10MHz, low phase noise, 20kHz offset, -60dBm~ +10dBm output power range. High stability and high-frequency resolution, plus amplifier and pulse modulation function, make SU3630 have more applications in R&D, Lab, industrial field, test measurement and calibration, metrology systems. Please contact us to get its general information, high-quality product, better after-sales service are promised to provide to you. If you want to get solutions, we can also make videos for your reference.
Product Model
SU3630
3GHz Signal Generator is a high-performance instrument designed for generating stable and precise signals up to 3 GHz. It is widely used in applications such as RF testing, communications, and signal simulation. With its broad frequency range, this signal generator is ideal for testing the performance of RF components, antennas, receivers, and other high-frequency devices. It provides accurate waveform generation, modulation capabilities, and signal purity, ensuring reliable results for research, development, and production environments. Whether for laboratory use, field testing, or manufacturing quality control, the 3GHz Signal Generator is an essential tool for engineers and technicians working with high-frequency systems.
SU3630 Synthesized Signal Generator Features
* Simple and easy to operate
* Up to -115dBc phase noise
* Up to +13dBm output power
* Flexible frequency and amplitude sweep function
* Pulse modulation function
* Standard interface of USB device and RS232
| Frequency | |
| Range | 25MHz~3GHz |
| Resolution | 3Hz |

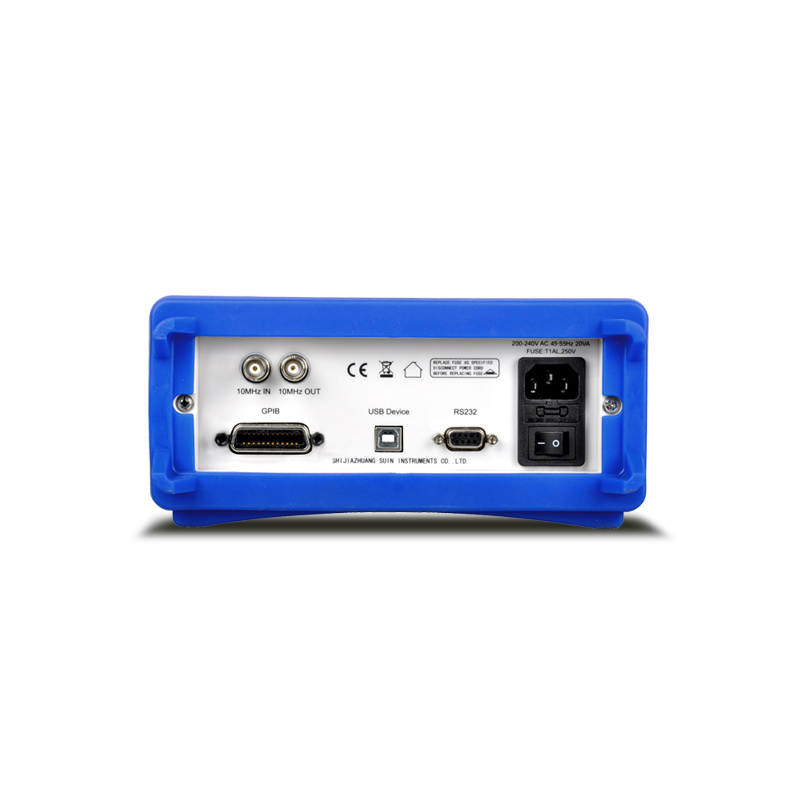

| Reference Frequency | Reference Output:Frequency: 10MHz Level: >0dBm Port: BNC connector Reference Input:Frequency: 10MHz Power: -3 ~+7dBm Input Port: BNC connector Impedance(nominal): 50Ω |
| Phase Noise | -90dBc~-115dBc Offset 20kHz |
| Spurious | Harmonic: <-35dBc (Power: ≤-5dBm) |
| Non-harmonic: <-60dBc | |
| Power | |
| Power Range | -60dBm~+10dBm |
| Resolution | 0.25dB |
| Accuracy | ±(1.0+2% absolute value of setting value)dB (output frequency 25MHz~2250MHz) |
±(1.0+4% absolute value of setting value)dB (output frequency 2200MHz~3000MHz) | |
| Input SWR | <1.5 typical value |
| RF Output | Terminal: N type Output Impedance: 50Ω |
| Pulse Modulation | |
| Break-make Ratio | > 80dB |
| Rising/Falling Edge | < 100ns |
| Pulse Width | 0.25s Min. |
| Pulse Period | 0.5s Min. |
| Sweep | |
| Frequency Sweep | Sweep Mode: Linear Min. Step: 3Hz |
| Power Sweep | Sweep Mode: Linear Min. Step: 0.25dBm |
| General Characteristics | |
| Power | AC 100V~240V, 50/60Hz, 50VA Max |
| Dimension & Weight | 386mm×256mm×123mm, <5kg |
Power Cord:1pcs
CD(Software+User's Guide):1pcs
Options
GPIB:1pcs
N-N cable:1pcs
N-SMA adapter:1pcs
