10MHz~12GHz Microwave Signal Generator
A microwave signal generator is a device that produces a continuous or pulsed microwave frequency signal. It is used in various applications such as testing and troubleshooting microwave communication systems, radars, and other electronic equipment.
Feature
* Ultra-low phase noise, excellent spurious, noise suppression, ultra-wide bandwidth
* wide application range in radar, communication, ECM, electronic reconnaissance and etc.
* It can also be used as local oscillator and signal generator
Product Model

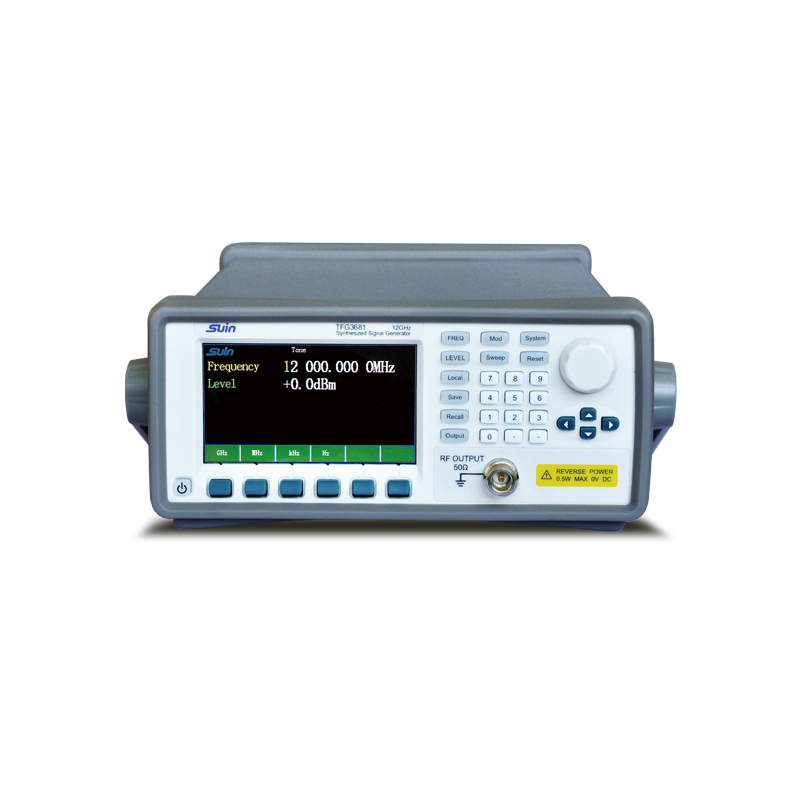

TFG3681
10MHz~12GHz Microwave Signal Generator is a high-performance instrument designed for generating microwave signals across a broad frequency range, from 10 MHz to 12 GHz. This wide frequency range makes it ideal for a variety of applications in RF and microwave testing, including communications, radar, satellite systems, and aerospace.
The signal generator is capable of producing stable, low-noise signals with precise frequency control, allowing for accurate testing and calibration of RF components, antennas, and other microwave devices. It often supports various modulation types, such as AM, FM, and pulse modulation, making it versatile for different testing scenarios. With its ability to generate continuous-wave (CW) or modulated signals, the 10MHz~12GHz Microwave Signal Generator is an essential tool for engineers and technicians working in research, development, manufacturing, and maintenance of microwave and RF systems.
Specifications
| TFG3681 | ||
| Frequency Range | 10MHz~12GHz | |
| Resolution | 20Hz | |
| 1mHz(option) | ||
| Accuracy | ±1ppm,Frequency≥1.0kHz,18ºC-28ºC | |
| Microwave Signal Generator Amplitude | ||
| Setting Range | -25dBm~+15dBm | |
| Specified Range | -10dBm~+13dBm | |
| Resolution | 0.1dB | |
| Accuracy | ±1.5dBm of setting(output level:+13dBm~-10dBm) | |
| Output Impedance | 50Ω | |
| Microwave Signal Generator Spectrum Purity | ||
| Harmonic | <-35dBc | |
| Non-harmonic | <-70dBc | |
| Phase Noise | -94dBc/Hz@10kHz,at 10GHz output | |
| Microwave Signal Generator Modulation | ||
| PM break-make ratio | 60dBc | |
| Make-break time range | 100nS-10mS | |
| General Characteristics | ||
| Power | AC200V~240V, 50(1±10%)Hz,<40VA | |
| Dimension&Weight | 254*103*374mm,4.2kg | |
Standard Accessories
Power Cord:1pcs
CD(Software+User's Guide):1pcs
